特点
-
双级式减压结构
-
输出稳定，流量精确
-
2-1/2"压力表
-
2",3-1/4"膜片
-
设有外置式安全阀
-
进气管带烧结青铜过滤网
-
上盖内部衬套采用特殊的塑胶材料使调压更加平稳顺畅
-
三年免费维修
-
外形尺寸：200mm×160mm×160mm
-
重 量：3.32kg

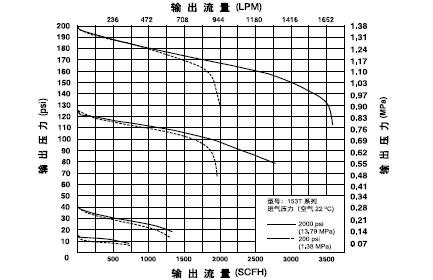

流量特性
订购指南
编号
PART
NUMBER
|
型号
MODEL
NUMBER
|
适用气体
GAS
SERVICE
|
最高输入压力
MAX.INLET
PRESSURE
(MPa)
|
最出压力
DELIVERY
PRESSURE
(MPa)
|
进气压力表
INLET
GAUGE
(MPa)
|
出气压力表
OUTLET
GAUGE
(MPa)
|
进气螺纹
INLET
CONNECTION
|
出气螺纹
OUTLET
CONNECTION
|
|
110011510
|
153TX-15
|
氧气 OXYGEN
|
15
|
0.01~1
|
25
|
0.25
|
G5/8"-RH(F)
|
M16-1.5RH(M)
|
|
110011511
|
153TX-40
|
15
|
0.01~0.28
|
25
|
0.4
|
G5/8"-RH(F)
|
M16-1.5RH(M)
|
|
110011513
|
153TX-125
|
15
|
0.03~0.85
|
25
|
1.6
|
G5/8"-RH(F)
|
M16-1.5RH(M)
|
|
110011514
|
153TX-200
|
15
|
0.07~1.4
|
25
|
2.5
|
G5/8"-RH(F)
|
M16-1.5RH(M)
|
|
110012510
|
153TY-15
|
乙炔 ACETYLENE
|
3
|
0.01~0.1
|
4
|
0.25
|
接瓶架
|
M16-1.5LH(M)
|
|
110013511
|
153TF-125
|
丙烷、天然气 LPG
|
3
|
0.03~0.85
|
4
|
1.6
|
M22-1.5LH(M)
|
M16-1.5LH(M)
|
|
110016510
|
153TIN-15
|
氩气、氦气、氮气
Ar, He, N2
|
15
|
0.01~0.1
|
25
|
0.25
|
G5/8"-RH(F)
|
M16-1.5RH(M)
|
|
110016511
|
153TIN-40
|
15
|
0.01~0.28
|
25
|
0.4
|
G5/8"-RH(F)
|
M16-1.5RH(M)
|
|
110016512
|
153TIN-125
|
15
|
0.03~0.85
|
25
|
1.6
|
G5/8"-RH(F)
|
M16-1.5RH(M)
|
|
110016513
|
153TIN-200
|
15
|
0.07~1.4
|
25
|
2.5
|
G5/8"-RH(F)
|
M16-1.5RH(M)
|
|
110018511
|
153TQ-200
|
空气 AIR
|
15
|
0.07~1.4
|
25
|
2.5
|
G5/8"-RH(F)
|
M16-1.5RH(M)
|
|
110014510
|
153TC-40
|
二氧化碳 CO2
|
15
|
0.01~0.28
|
25
|
0.4
|
G5/8"-RH(F)
|
M16-1.5RH(M)
|
|
110014511
|
153TC-200
|
15
|
0.07~1.4
|
25
|
2.5
|
G5/8"-RH(F)
|
M16-1.5RH(M)
|
