特点
-
单级式减压结构
-
最高输入压力 1.4 MPa
-
中大流量输出压力
-
进气管带烧结青铜过滤网
-
2-1/2"压力表
-
2-3/4"膜片
-
三年免费维修
-
外形尺寸：140mm×170mm×100mm
-
重 量：1.50kg
警告：此类减压器不适用于气瓶

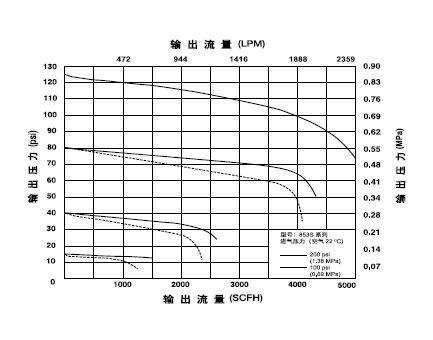

流量特性
订购指南
型号
MODEL
NUMBER
|
适用气体
GAS
SERVICE
|
最高输入压力
MAX.INLET
PRESSURE
(MPa)
|
最出压力
DELIVERY
PRESSURE
(MPa)
|
进气压力表
INLET
GAUGE
(MPa)
|
出气压力表
OUTLET
GAUGE
(MPa)
|
进气螺纹
INLET
CONNECTION
|
出气螺纹
OUTLET
CONNECTION
|
|
110291520
|
853SX-15
|
氧气 OXYGEN
|
1.4
|
0.01~0.1
|
N/A
|
0.25
|
G5/8"-RH(F)
|
M16-1.5RH(M)
|
|
110291521
|
853SX-40
|
1.4
|
0.01~0.28
|
N/A
|
0.4
|
G5/8"-RH(F)
|
M16-1.5RH(M)
|
|
110291522
|
853SX-80
|
1.4
|
0.02~0.56
|
N/A
|
1
|
G5/8"-RH(F)
|
M16-1.5RH(M)
|
|
110291523
|
853SX-125
|
1.4
|
0.03~0.85
|
N/A
|
1.6
|
G5/8"-RH(F)
|
M16-1.5RH(M)
|
|
110292510
|
853SY-15
|
乙炔 ACETYLENE
|
1.4
|
0.01~0.1
|
N/A
|
0.25
|
G5/8"-LH(F)
|
M16-1.5LH(M)
|
|
110293510
|
853SF-80
|
丙烷、天然气 LPG
|
1.4
|
0.02~0.56
|
N/A
|
1
|
G5/8"-LH(F)
|
M16-1.5LH(M)
|
|
110293511
|
853SF-125
|
1.4
|
0.03~0.85
|
N/A
|
1.6
|
G5/8"-LH(F)
|
M16-1.5LH(M)
|
|
110296500
|
853SIN-40
|
氩气、氦气、氮气
Ar, He, N2
|
1.4
|
0.01~0.28
|
N/A
|
0.4
|
G5/8"-RH(F)
|
M16-1.5RH(M)
|
|
110296501
|
853SIN-80
|
1.4
|
0.02~0.56
|
N/A
|
1
|
G5/8"-RH(F)
|
M16-1.5RH(M)
|
|
110296502
|
853SIN-125
|
1.4
|
0.03~0.85
|
N/A
|
1.6
|
G5/8"-RH(F)
|
M16-1.5RH(M)
|
|
110298500
|
853SQ-40
|
空气 AIR
|
1.4
|
0.01~0.28
|
N/A
|
0.4
|
G5/8"-RH(F)
|
M16-1.5RH(M)
|
|
110298501
|
853SQ-80
|
1.4
|
0.02~0.56
|
N/A
|
1
|
G5/8"-RH(F)
|
M16-1.5RH(M)
|
|
110298502
|
853SQ-125
|
1.4
|
0.03~0.85
|
N/A
|
1.6
|
G5/8"-RH(F)
|
M16-1.5RH(M)
|
|
110297500
|
853SH-80
|
氢气 HYDROGEN
|
1.4
|
0.02~0.56
|
N/A
|
1
|
G5/8"-LH(F)
|
M16-1.5LH(M)
|
|
110297501
|
853SQ-125
|
1.4
|
0.03~0.85
|
N/A
|
1.6
|
G5/8"-LH(F)
|
M16-1.5LH(M)
|
|
110294500
|
853SC-40
|
二氧化碳 CO2
|
1.4
|
0.01~0.28
|
N/A
|
0.4
|
G5/8"-RH(F)
|
M16-1.5RH(M)
|
|
110294501
|
853SC-80
|
1.4
|
0.02~0.56
|
N/A
|
1
|
G5/8"-RH(F)
|
M16-1.5RH(M)
|
|
110294502
|
853SC-125
|
1.4
|
0.03~0.85
|
N/A
|
1.6
|
G5/8"-RH(F)
|
M16-1.5RH(M)
|
