特点
-
双级式减压结构
-
最高输入压力 15 MPa
-
超大流量输出压力
-
2-1/2"压力表
-
2"，3-1/4"膜片
-
进气管带烧结青铜过滤网
-
上盖内部衬套采用特殊的塑胶材料使调压更加平稳顺畅
-
三年免费维修
-
外形尺寸：200mm×200mm×170mm
-
重 量：3.90kg

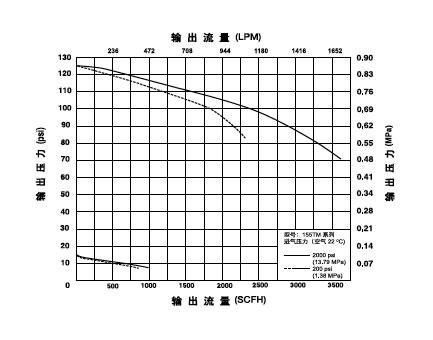

流量特性
订购指南
编号
PART
NUMBER
|
型号
MODEL
NUMBER
|
适用气体
GAS
SERVICE
|
最高输入压力
MAX.INLET
PRESSURE
(MPa)
|
最出压力
DELIVERY
PRESSURE
(MPa)
|
进气压力表
INLET
GAUGE
(MPa)
|
出气压力表
OUTLET
GAUGE
(MPa)
|
进气螺纹
INLET
CONNECTION
|
出气螺纹
OUTLET
CONNECTION
|
|
110021550
|
155TMX-125
|
氧气 OXYGEN
|
15
|
0.03~0.85
|
25
|
1.6
|
G3/4-RH(M)
|
G3/4-RH(M)
|
|
110021551
|
155TMX-200
|
15
|
0.07~1.4
|
25
|
2.5
|
G3/4-RH(M)
|
G3/4-RH(M)
|
|
110021552
|
155TMX-125-A
|
15
|
0.03~0.85
|
25
|
1.6
|
1"-11-1/2"NPS RH(M)
|
1"-11-1/2"NPS RH(F)
|
|
110021553
|
155TMX-200-A
|
15
|
0.07~1.4
|
25
|
2.5
|
1"-11-1/2"NPS RH(M)
|
1"-11-1/2"NPS RH(F)
|
|
110022550
|
155TMY-15
|
乙炔 ACETYLENE
|
3
|
0.01~0.1
|
4
|
0.25
|
G3/4-LH(M)
|
G3/4-LH(M)
|
|
110022551
|
155TMY-15-A
|
3
|
0.01~0.1
|
4
|
0.25
|
1"-11-1/2"NPS LH(M)
|
1"-11-1/2"NPS LH(F)
|
|
110024510
|
155TMC-125
|
二氧化碳 CO2
|
15
|
0.03~0.85
|
25
|
1.6
|
G3/4-RH(M)
|
G3/4-RH(M)
|
|
110024511
|
155TMC-200
|
15
|
0.07~1.4
|
25
|
2.5
|
G3/4-RH(M)
|
G3/4-RH(M)
|
|
110024512
|
155TMC-125-A
|
15
|
0.03~0.85
|
25
|
1.6
|
1"-11-1/2"NPS RH(M)
|
1"-11-1/2"NPS RH(F)
|
|
110024513
|
155TMC-200-A
|
15
|
0.07~1.4
|
25
|
2.5
|
1"-11-1/2"NPS RH(M)
|
1"-11-1/2"NPS RH(F)
|
|
110023550
|
155TMF-40
|
丙烷、天然气 LPG
|
3
|
0.01~0.28
|
4
|
0.4
|
G3/4-LH(M)
|
G3/4-LH(M)
|
|
110023561
|
155TMF-40-A
|
3
|
0.01~0.28
|
4
|
0.4
|
1"-11-1/2"NPS LH(M)
|
1"-11-1/2"NPS LH(F)
|
|
110026550
|
155TMIN-125
|
氩气、氦气、氮气
Ar, He, N2
|
15
|
0.03~0.85
|
25
|
1.6
|
G3/4-RH(M)
|
G3/4-RH(M)
|
|
110026551
|
155TMIN-200
|
15
|
0.07~1.4
|
25
|
2.5
|
G3/4-RH(M)
|
G3/4-RH(M)
|
|
110026552
|
155TMIN-125-A
|
15
|
0.03~0.85
|
25
|
1.6
|
1"-11-1/2"NPS RH(M)
|
1"-11-1/2"NPS RH(F)
|
|
110026553
|
155TMIN-200-A
|
15
|
0.07~1.4
|
25
|
2.5
|
1"-11-1/2"NPS RH(M)
|
1"-11-1/2"NPS RH(F)
|
|
110028550
|
155TMQ-125
|
空气 AIR
|
15
|
0.03~0.85
|
25
|
1.6
|
G3/4-RH(M)
|
G3/4-RH(M)
|
|
110027550
|
155TMH-200
|
氢气 HYDROGEN
|
15
|
0.07~1.4
|
25
|
2.5
|
G3/4-LH(M)
|
G3/4-LH(M)
|
|
110027551
|
155TMH-200-A
|
15
|
0.07~1.4
|
25
|
2.5
|
1"-11-1/2"NPS LH(M)
|
1"-11-1/2"NPS LH(F)
|
